Year:

2006



Size:

52.00 x 36.00 cm



Price:

on request

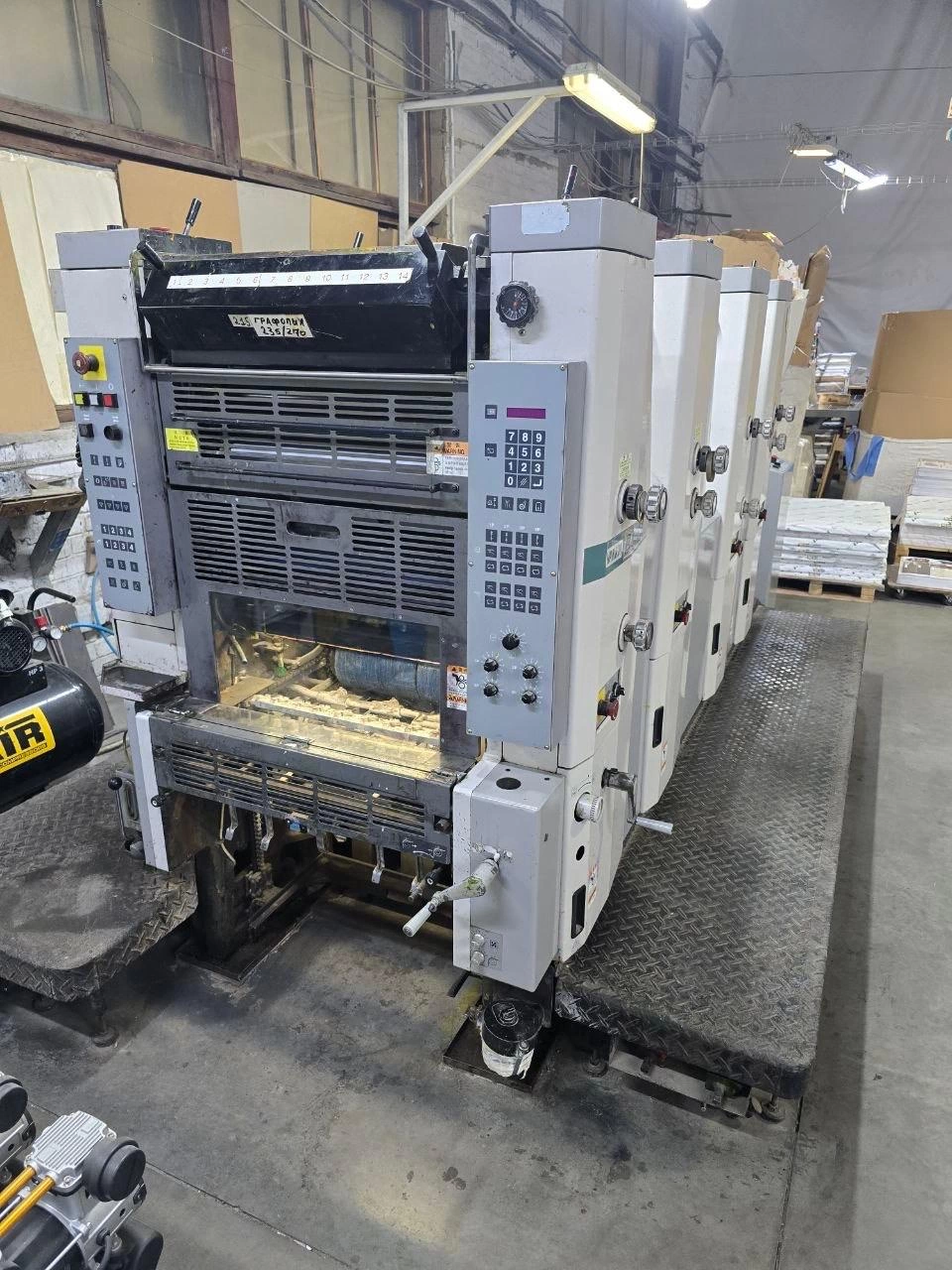

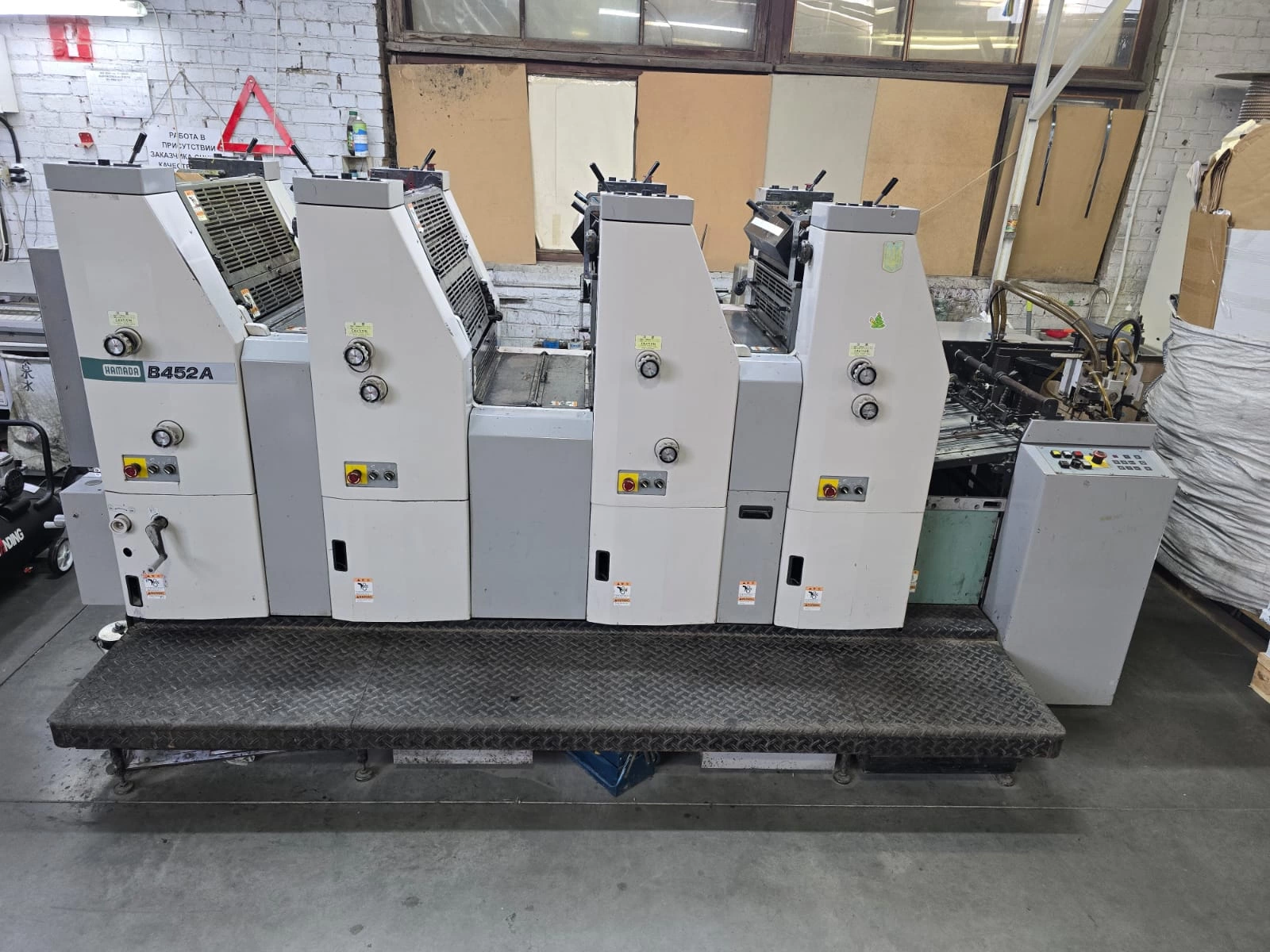

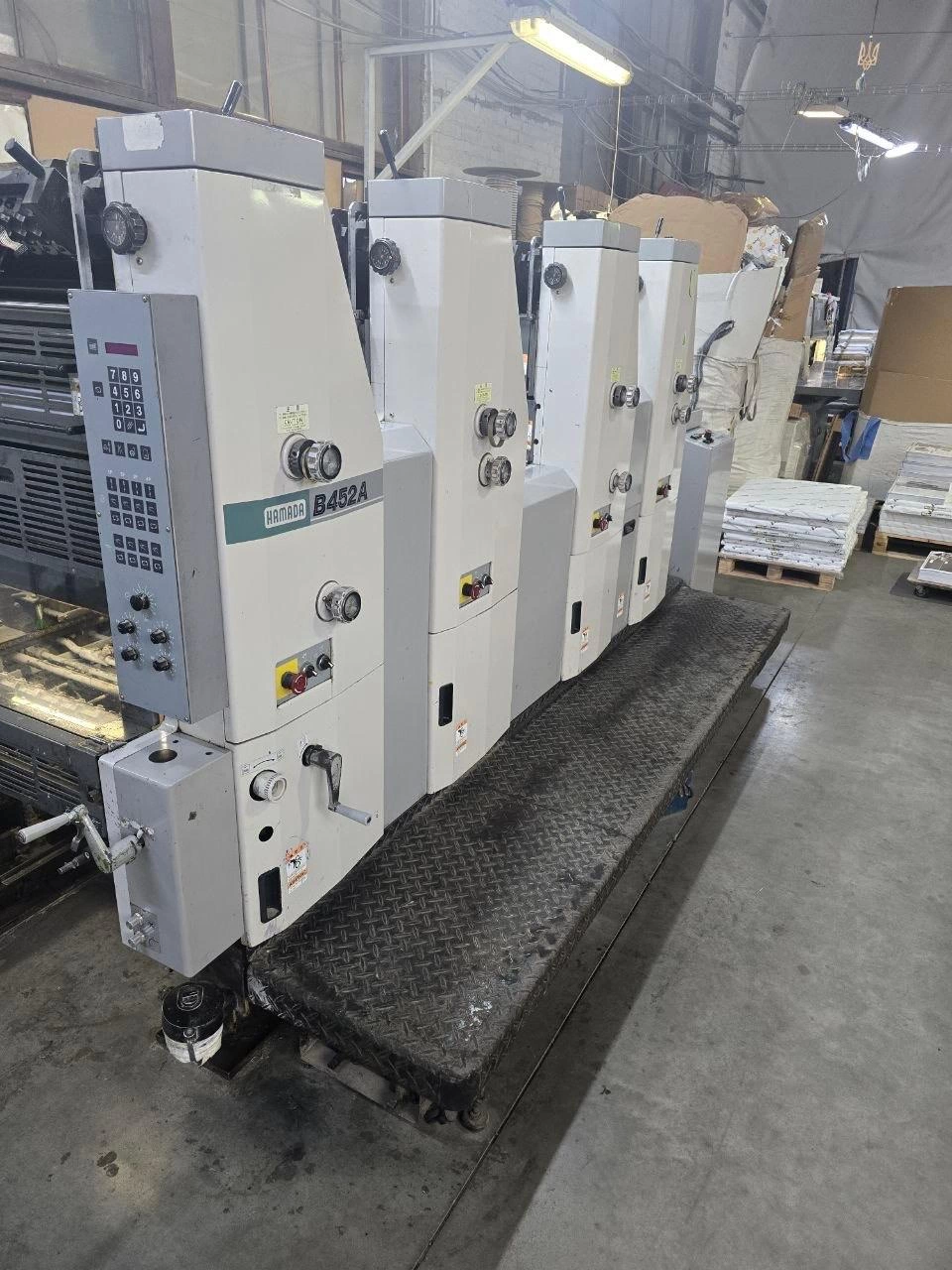

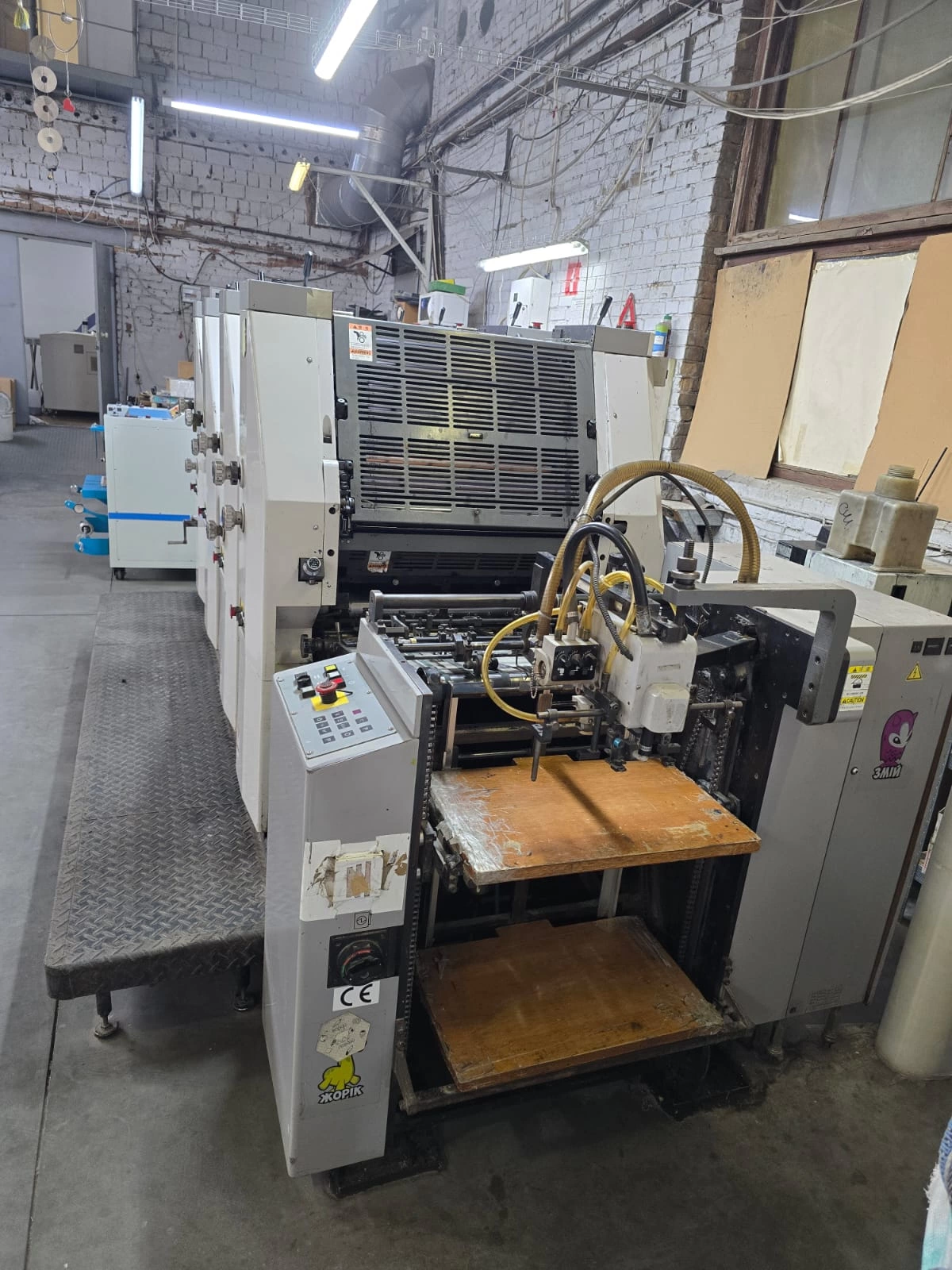

4-color sheet-fed offset printing press B3 format.

This model is designed for commercial printing in small to medium print runs.

Printing Specifications:
Maximum sheet size: 520 × 365 mm
Minimum sheet size: 257 × 182 mm (down to 140 × 90 mm with a special adapter)
Maximum printing area: 505 × 350 mm
Stock thickness range: 0.04 to 0.3 mm
Maximum printing speed: 10,000 sheets per hour
Printing plate size: 510 × 400 × 0.2 mm

Key Equipment & Features of the A-1 Series
Dampening system: Continuous alcohol dampening system (Hamada Continuous Dampening System), typically paired with a Technotrans refrigeration unit.
Plate changing: Semi-automatic plate changing system (SAPC / EPS).
Control console: Remote control console for ink zones and registration, with CIP3 protocol support.
Construction: Chrome-plated impression and plate cylinders, ensuring high durability.
Automation: Automatic blanket wash (ABW) and an anti-set-off powder spray unit.

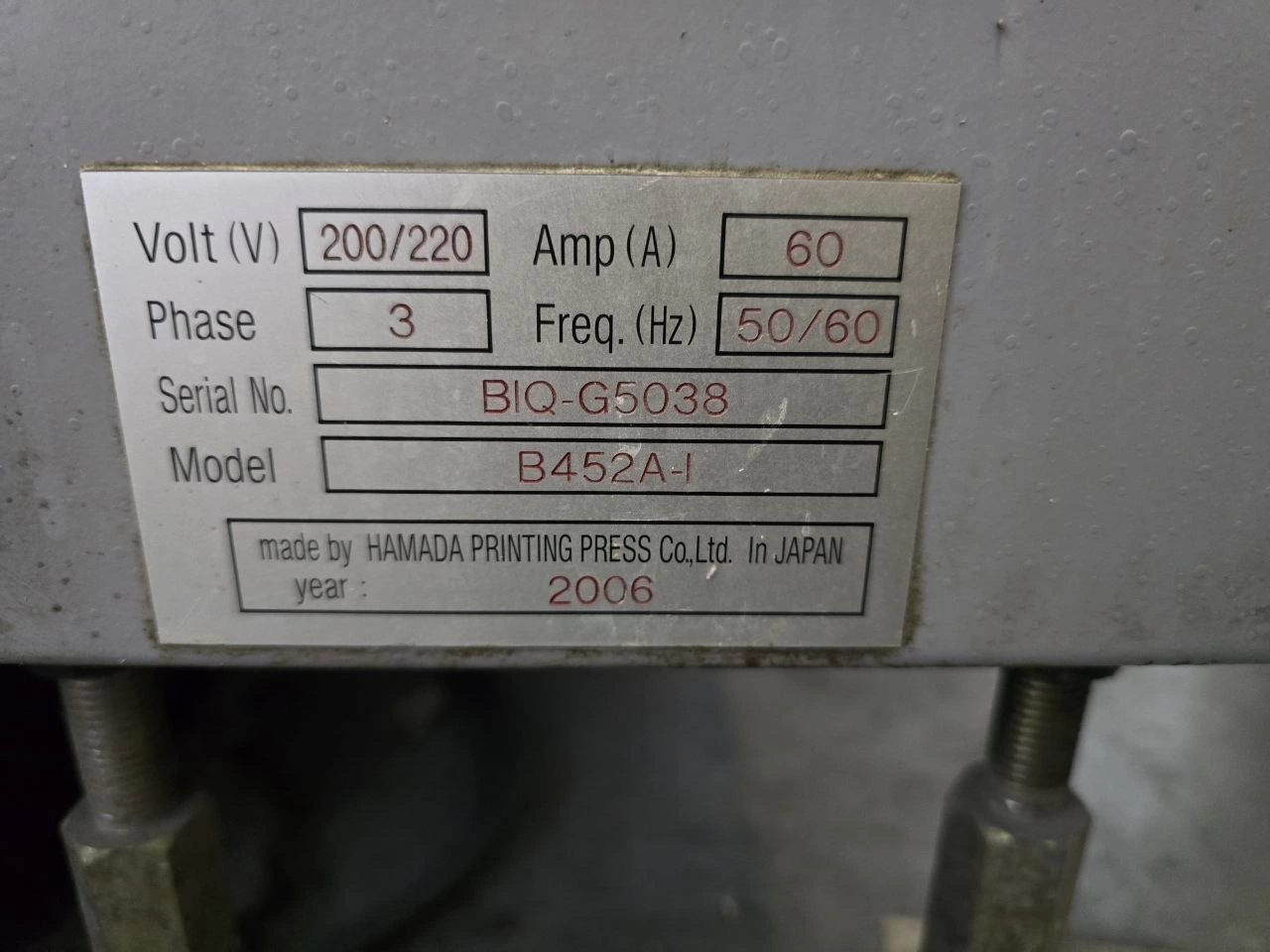

Electrical Specifications (from the nameplate photo)
Voltage (Volt): 200 / 220 V
Phase: 3 phase
Current (Amp): 60 A
Frequency (Freq.): 50 / 60 Hz
Serial No.: BIQ-G5038
Manufacturer: Hamada Printing Press Co., Ltd. (Japan)
Dimensions & Weight
Length × Width × Height: ~ 3.65 × 2.00 × 1.65 m
Weight: approx. 6,500 kg
